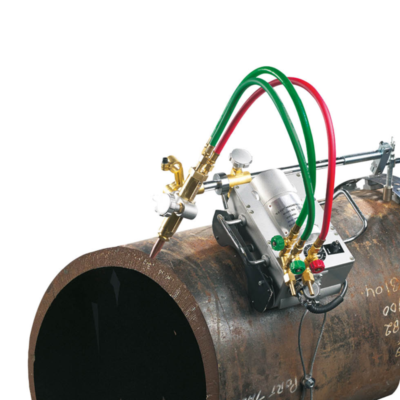

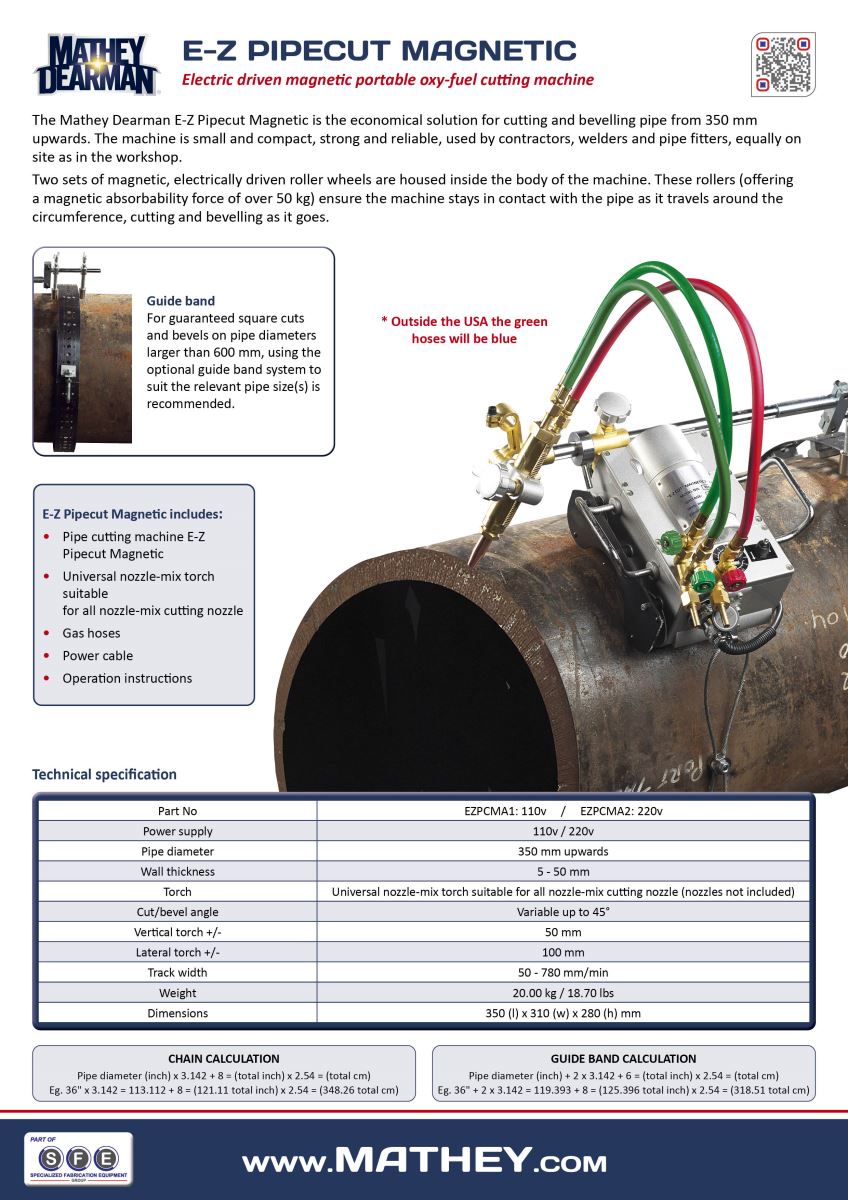

E-Z Pipecut Magnetic

The Mathey Dearman E-Z Pipecut Magnetic is the economical solution for cutting and bevelling pipe from 9″ / 230 mm upwards. The machine is small and compact, strong and reliable, used by contractors, welders, and pipe fitters, equally on-site as in the workshop.

Two sets of magnetic, electrically driven roller wheels are housed inside the body of the machine. These rollers (offering a magnetic absorbability force of over 110 lbs / 50 kg) ensure the machine stays in contact with the pipe as it travels around the circumference, cutting and bevelling as it goes.

Mobile Nav

Electric-driven magnetic portable oxyfuel cutting machine

E-Z Pipecut Magnetic includes:

  • Pipe cutting machine E-Z Pipecut Magnetic
  • Universal nozzle-mix torch suitable for all nozzle-mix cutting nozzles (not interchangeable with Mathey Dearman saddle and band crawler machines)
  • Gas hoses
  • Power cable

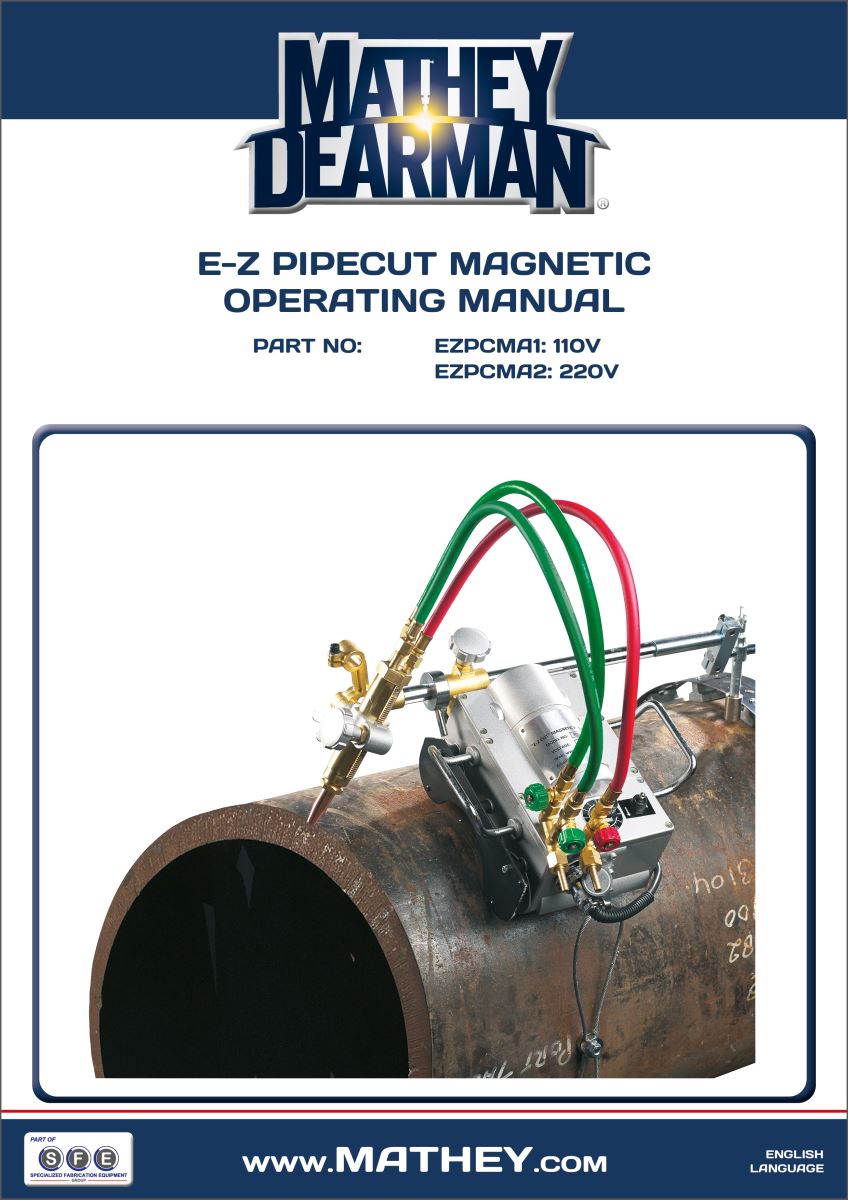

  • Operation instructions

Guide band

For guaranteed square cuts and bevels on pipe diameters larger than 24″ / 600 mm, using the optional guide band system to suit the relevant pipe size(s) is recommended.

* Outside the USA, the green hoses will be blue

Technical Specification

PART NO. EZPCMAG1: 110v     /     EZPCMAG2: 220v
POWER SUPPLY 110v / 220v
PIPE DIAMETER 9″ / 230 mm upwards
WALL THICKNESS 0.197 – 2″ / 5 – 50 mm
TORCH Universal nozzle-mix torch suitable for all nozzle-mix cutting nozzle (nozzles not included)
CUT/BEVEL ANGLE Variable up to 45°
VERTICAL TORCH +/- 2″ / 50 mm
LATERAL TORCH +/- 4″ / 100 mm
TRACK WIDTH 50 – 780 mm/min
CUTTING SPEED 50 – 1,150 mm/min
WEIGHT 20.00 kg / 18.70 lbs
DIMENSIONS L x W x H – 350 x 310 x 280 mm

Guide band calculation: Pipe diamter (inch) + 2 x 3.142 + 6 = (total inch) x 2.54 = (total cm), E.G. 36″ + 2 x 3.142 = 119.40 + 6 = (125.40 total inch) x 2.54 = (318.51 total cm)
